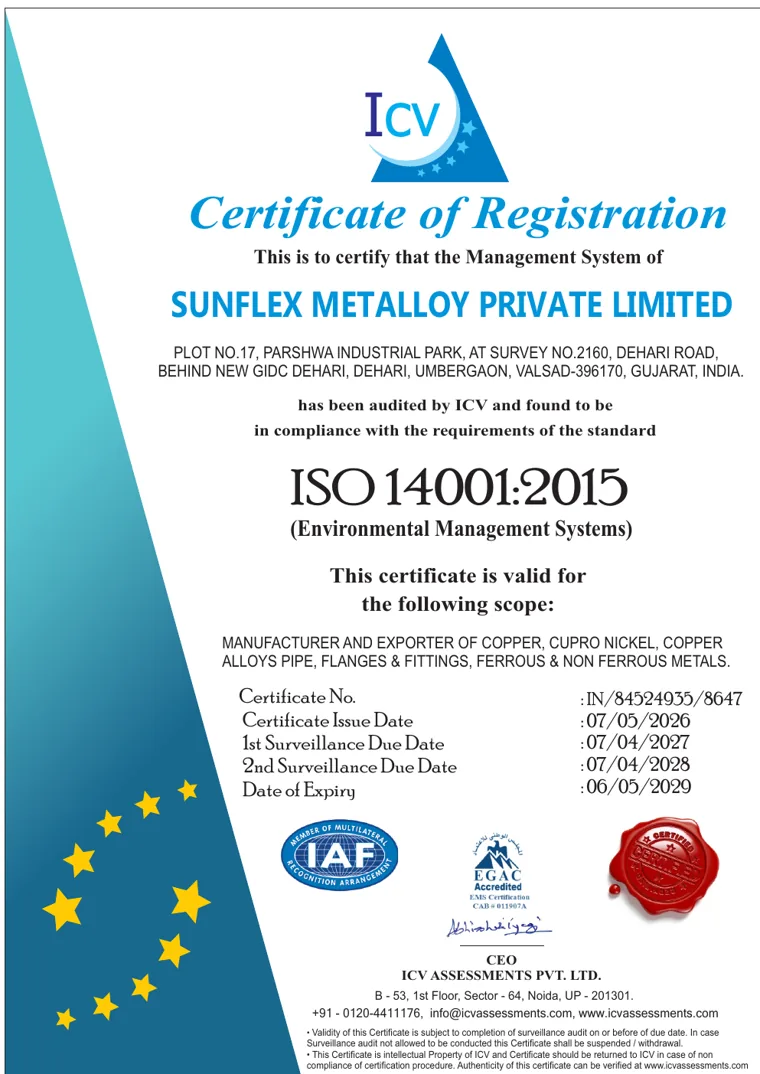

ISO 14001:2015
Environmental Management Systems
Certificate of Registration for the environmental management system of Sunflex Metalloy Private Limited.
Bronze Flanges Engineered for Industrial Service
Manufacturer & Exporter of Bronze, Gunmetal, Aluminium Bronze and Nickel Aluminium Bronze Flanges.
Reference standards used across our product range. Applicable standard is stated on each purchase order.
- ASTM B62
- ASTM B148
- ASTM B584
- ASTM B150
- ASME B16.24
- MSS SP-106
- MSS SP-25
- SAE J461
01 / ENGINEERING INTRODUCTION

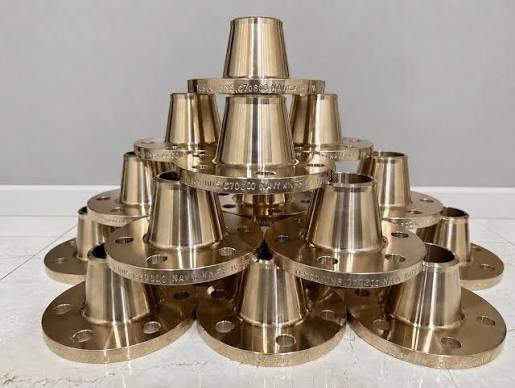

Bronze flanges machined to your specification
Sunflex Metalloy Pvt. Ltd. manufactures bronze, gunmetal, aluminium bronze and nickel aluminium bronze flanges at three units in Gujarat, India, for piping, pump, valve, marine and industrial customers. Each flange is machined to a standard pattern or to the customer’s drawing, in the UNS grade the specification names.
Material grade, flange type, size, class, facing and documentation are agreed at the quotation stage, so the order reads like your specification. Mill test certificates and inspection documents go with the shipment when the purchase order calls for them.
Range at a glance
SM-001| Parameter | Detail |
|---|---|
| Flange types | 9 — slip-on, threaded, blind, socket-weld, lap joint, plate, reducing, loose, custom |
| Material grades | 7 UNS grades — bronze, gunmetal, aluminium bronze, nickel aluminium bronze |
| Manufacturing units | 3, Umargam and Umbergaon, Gujarat, India |
| Order basis | Standard pattern or customer drawing |
| Enquiry route | Request a quote, send your drawing, or email the technical sales team |
02 / PRODUCTS

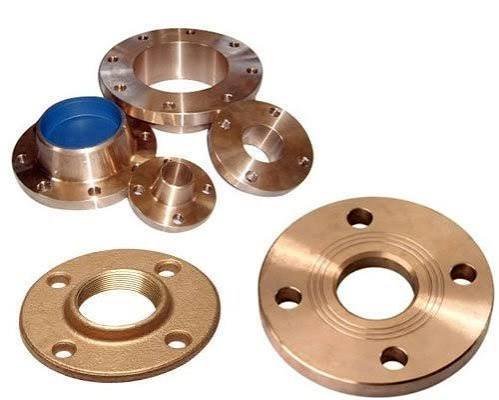

Flange product range
Nine flange types, each with its own construction, sizing and inspection notes.
P-01

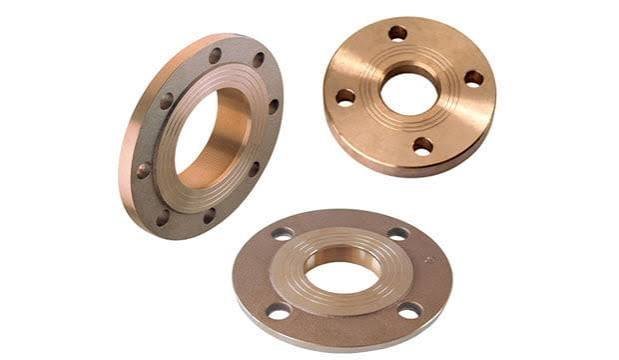

Slip-On Flanges
Pipe slides in and is brazed or welded. Forgiving alignment for general pipework.
View specificationP-02

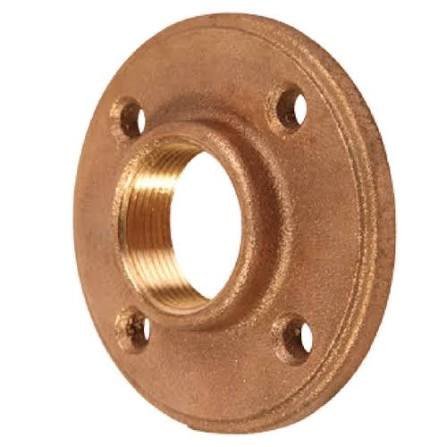

Threaded / Screwed Flanges
Tapped bore (NPT or BSP). No welding at the joint.
View specificationP-03

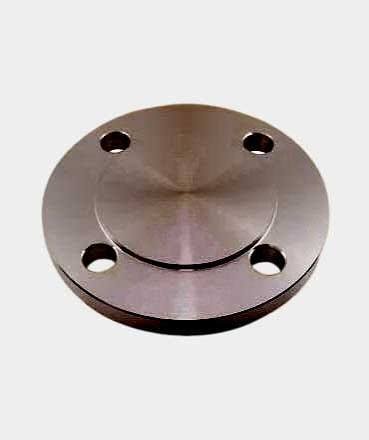

Blind Flanges
Solid disc for line isolation, pressure testing and valve closure.
View specificationP-04

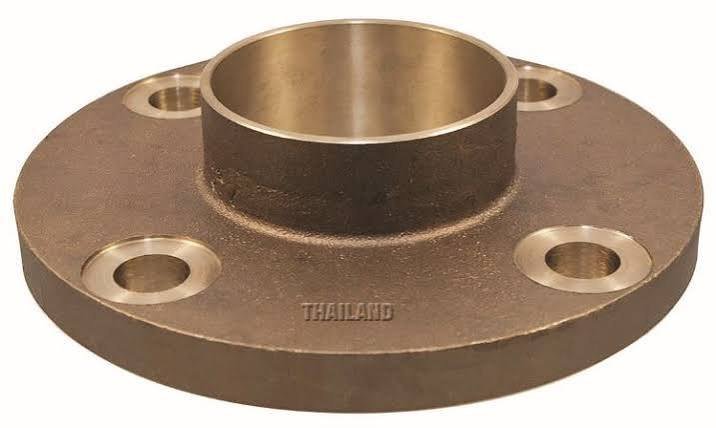

Socket-Weld Flanges
Pipe seats in a machined socket. Smooth bore for small-bore lines.
View specificationP-05

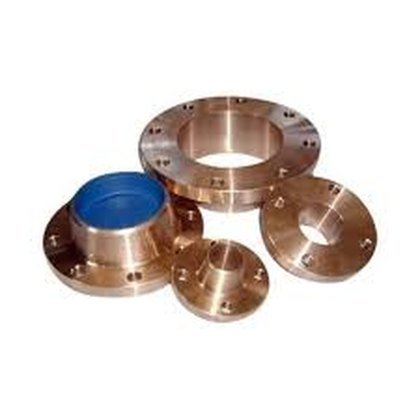

Lap Joint Flanges
Rotates on a stub end for easy bolt-hole alignment.
View specificationP-06

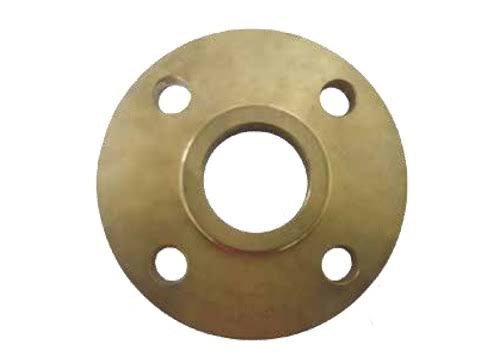

Plate Flanges
Flat drilled rings machined to your diameter, bore and bolt pattern.
View specificationP-07
Reducing Flanges
Larger flange face, smaller bore or thread. No separate reducer.
View specificationP-08

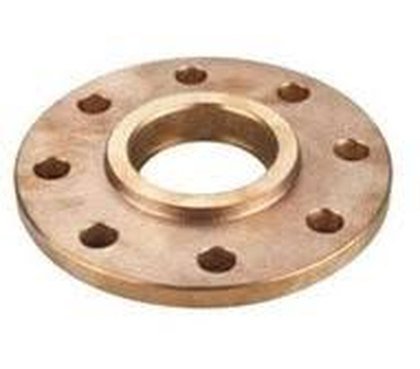

Loose Flanges
Backing ring for collars, stub ends and lapped pipe ends.
View specificationP-09
Custom / Special Flanges
Non-standard flanges machined to your drawing or sample.
View specification03 / MATERIAL ENGINEERING
Seven UNS grades
Cast and wrought copper alloys, each with its own data page: composition, mechanical properties, machining and flange applications.
UNS C93200
Bronze
High-leaded tin bronze (SAE 660). Free-machining general-purpose alloy.
Material dataUNS C95400Aluminium Bronze
Cast aluminium bronze. Wear-resistant, heat-treatable, marine and pump service.
Material dataUNS C95500Aluminium Bronze
Nickel-bearing aluminium bronze. Higher strength for heavy-duty service.
Material dataUNS C95800Nickel Aluminium Bronze
Nickel aluminium bronze (NAB). The seawater, marine and offshore alloy.
Material dataUNS C63000Aluminium Bronze
Wrought nickel aluminium bronze for bar, forging and plate flanges.
Material dataUNS C83600Gunmetal
Ounce metal 85-5-5-5 to ASTM B62. Valve, pump and water flanges.
Material dataUNS C84400Bronze
Valve-composition semi-red brass. Fast machining for fittings and valves.
Material dataCOMPAREAll grades side by side
Composition class, specification and machinability for all seven grades in one table.
Material comparison04 / TECHNICAL CAPABILITY
From material to dispatch
Five stages, each tied to the specification on your order.
Material
Grade and specification confirmed against the order: UNS number, ASTM / ASME / SAE reference and product form.
Manufacturing
Blanks prepared in the form the specification requires: cast stock, bar, forging or plate.
Machining
Facing, turning, boring, drilling and tapping to the drawing or flange standard.
Inspection
Visual, dimensional and material checks, plus any tests the purchase order lists.
Dispatch
Marking, packing and documentation: packing list, commercial documents and certificates as required.
05 / APPLICATIONS
Where bronze flanges are specified
Seawater, pump, valve and industrial piping systems that call for copper-alloy flanges.
06 / QUALITY
Inspection built into every stage
Checkpoints follow the flange from incoming material to packing. The diagram marks the features inspected on a typical drilled flange; specific tests are performed when the purchase order lists them.
- ABoreDiameter, concentricity and thread or socket form where fitted.
- BOutside diameterChecked against the standard or drawing.
- CBolt circle (PCD)Pitch-circle diameter for correct mating with the counter-flange.
- DBolt holesCount, diameter and hole-to-hole spacing.
- EFace and finishFlatness and contact finish; visual check for porosity or surface defects.
- FThicknessFlange and hub thickness against the drawing or class table.
07 / MANUFACTURING LOCATIONS
Three manufacturing units in Gujarat
Umargam and Umbergaon, Gujarat, India.
Unit 1
Behind New GIDC Road, Devdham, Dehri,
Umargam - 396171, Gujarat, India
Umargam
Plot No.17, Parshva Industrial Park Rd,Behind New GIDC Road, Devdham, Dehri,
Umargam - 396171, Gujarat, India
Unit 2
OHM Industrial Infrastructure Park,
Umbergaon, Gujarat - 396170, India
Umbergaon
Plot No.13, Survey No.2111,OHM Industrial Infrastructure Park,
Umbergaon, Gujarat - 396170, India
Unit 3
Valsad, Gujarat - 396171, India
GIDC Umbergaon
Shed No. A2/256, GIDC Umbergaon,Valsad, Gujarat - 396171, India
08 / CERTIFICATIONS
Certified management systems
ISO 14001:2015 and ISO 45001:2018 certificates issued to Sunflex Metalloy Private Limited.

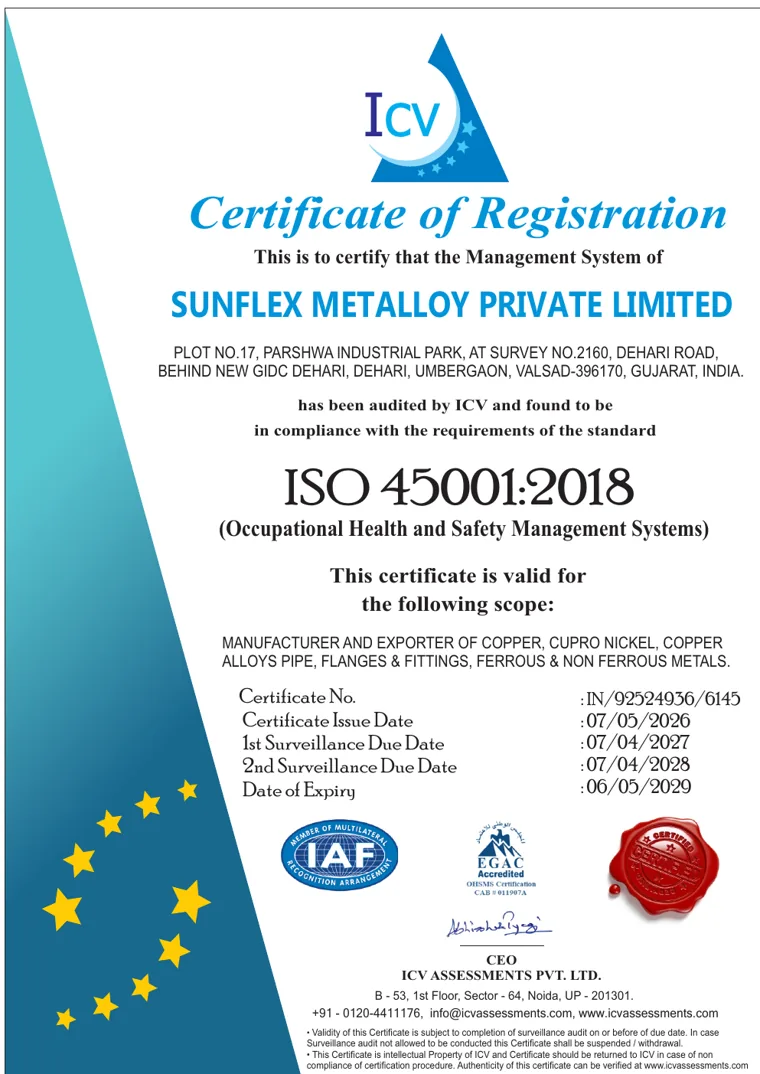

ISO 45001:2018
Occupational Health & Safety Management Systems
Certificate of Registration for the occupational health and safety management system of Sunflex Metalloy Private Limited.
09 / FAQ
Bronze flange questions, answered
Which flange materials does Sunflex Metalloy manufacture?
We manufacture flanges in seven UNS grades: C93200 bronze, C95400 and C95500 aluminium bronze, C95800 nickel aluminium bronze, C63000 wrought aluminium bronze, C83600 gunmetal and C84400 bronze. Each grade has its own data page covering composition, mechanical properties and flange applications.
Can you make flanges to my drawing?
Yes. Custom and special flanges are machined to your drawing, sample or project specification. Email the drawing, material grade, dimensions and quantity to sales@sunflexmetalloy.com, or use the RFQ form to tell us what you need, and we will confirm what is needed to quote.
Which standards do your flanges follow?
The governing standard is stated on your purchase order. Typical references are ASME B16.24 and MSS SP-106 for cast copper alloy flanges, ASTM B148, B62 and B584 for castings, and ASTM B150 for wrought C63000. Bolt patterns can follow ASME, EN/PN, JIS or your drawing.
What documents are supplied with an order?
Documents depend on the purchase order. They can include a Material Test Certificate (MTC), inspection and dimensional reports, test documentation, a packing list and commercial export documents. State your document requirements in the RFQ.
Where are your manufacturing units?
Sunflex Metalloy Pvt. Ltd. operates three manufacturing units in Umargam and Umbergaon, Gujarat, India. The full addresses are on the contact page.
RFQ / TECHNICAL SALES
Have a Drawing or Flange Specification?
Send your drawing, material grade, dimensions and quantity to our technical sales team.
