UNS C95400 Aluminium Bronze Flanges Manufacturer & Exporter
C95400 is the general-purpose cast aluminium bronze: strong, wear-resistant and corrosion-resistant, and heat-treatable for higher strength. It is a standard choice for pump, valve and marine flanges.
UNS C95400 at a glance
- Cast aluminium bronze (Cu-Al-Fe), also called aluminum bronze grade C
- Minimum 75 ksi tensile as-cast per ASTM B148
- Responds to heat treatment
- Lead-free alloy chemistry
Material Overview and Designation
Designation and classification
UNS C95400| Item | Detail |
|---|---|
| UNS designation | C95400 |
| Common names | Aluminium (aluminum) bronze C; ASTM B148 Grade C (formerly 9C); SAE CA954 |
| Alloy family | Cast copper-aluminium-iron (aluminium bronze) |
| Casting specifications | ASTM B148 (sand), B271 (centrifugal), B505 (continuous); ASME SB-148 |
| Heat treatment | Among the B148 grades that respond to heat treatment |
Chemical Composition
Chemical composition (weight %)
SM-CHEM-C95400| Element | Range, % |
|---|---|
| Copper (Cu) | 83.0 min |
| Aluminium (Al) | 10.0 – 11.5 |
| Iron (Fe) | 3.0 – 5.0 |
| Nickel incl. cobalt (Ni + Co) | 1.5 max |
| Manganese (Mn) | 0.50 max |
| Other elements | Residual limits per ASTM B148 |
Weight %, per ASTM B148 and the casting specification on the order.
Mechanical Properties
Mechanical properties: ksi (MPa)
SM-MECH-C95400| Condition / specification | Tensile, min | Yield, min | Elongation, min % |
|---|---|---|---|
| As-cast — ASTM B148 sand castings | 75 (≈515) | 30 (≈205) | 12 |
| Centrifugal cast — ASTM B271 | 75 (≈515) | 30 (≈205) | 12 |
| Heat-treated (up to, per B148) | 90 (≈620) | 45 (≈310) | 6 |
Values are specification minimums or typical reference data and depend on product form, casting method and condition. Acceptance values are those in the specification and purchase order that apply to your order.
Physical and Fabrication Properties
Physical and fabrication data
SM-PHYS-C95400| Property | Value |
|---|---|
| Density | 0.269 lb/in³ (7.45 g/cm³) |
| Machinability rating | 60 (CDA scale, C36000 = 100) |
| Melting range | ≈1880 – 1900 °F (≈1027 – 1038 °C) |
| Specific heat | 0.1 Btu/lb/°F (≈419 J/kg·K) |
| Electrical conductivity | ≈13 % IACS |
| Thermal conductivity | ≈33.9 Btu/(hr·ft·°F) |
| Thermal expansion, 68–572 °F | ≈9.0 × 10⁻⁶ per °F |
Physical and fabrication values are published reference data (CDA / producer data sheets). Machinability: free-cutting brass C36000 = 100.
Corrosion Characteristics and Service
An aluminium oxide film forms on the surface of aluminium bronze and gives C95400 good resistance to fresh water, brackish water, many industrial atmospheres and non-oxidizing acids, with resistance to erosion and cavitation damage well beyond that of tin bronzes. In wear service the alloy is used for gears, bushings and valve seats.
For continuous seawater service, the nickel aluminium bronzes (C95500, C95800) are the more common specification because of their nickel content and higher strength. C95400 remains widely used in marine hardware, pump parts and valve components where the service environment is milder or where the project specification names it. Galvanic coupling to steel bolting should be considered in the design.
Manufacturing and Machining
C95400 machines at a rating of 60 on the CDA scale — slower than leaded bronzes, much easier than C95800. Rigid set-ups and carbide tooling produce clean faces and bores. It is weldable with matching filler by a qualified procedure; repair welds and heat treatment must follow the specification.
Flange blanks are produced from sand, centrifugal or continuous-cast stock. Heat-treated condition is available where the specification calls for the higher strength level, which changes both the required machining allowance and the final hardness.

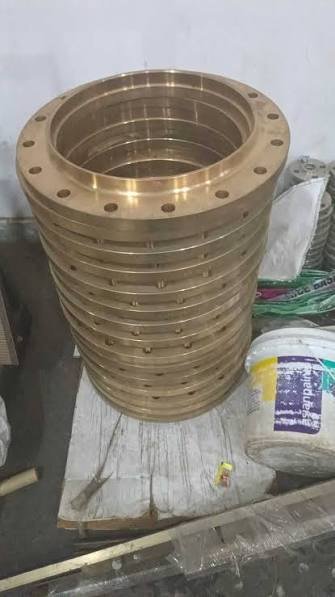

UNS C95400 Flanges and Applications
C95400 flanges serve pump and valve connections, marine pipework, hydraulic and heavy-machinery connections, and any joint exposed to wear, shock or vibration. Where the drawing calls for a stronger alloy than leaded bronze but not the seawater duty of C95800, C95400 is the usual middle choice.
Flange types in UNS C95400
SM-FLG-C95400| Flange type | Notes |
|---|---|
| Slip-On Flanges | General marine and pump pipework |
| Socket-Weld Flanges | Weldable small-bore connections |
| Blind Flanges | Wear-resistant closure plates |
| Threaded / Screwed Flanges | Higher-strength tapped flanges |
- Pump and valve flanges
- Marine pipework and deck hardware connections
- Hydraulic and heavy-machinery connections
- Wear-exposed flange rings and plates
Inspection and Documentation
Material is verified against UNS C95400 and the casting specification, with an MTC where required. Dimensional inspection covers OD, thickness, bore, PCD and hole pattern, and visual examination covers gasket faces. Hardness testing, liquid penetrant or radiographic examination and pressure testing are carried out only when the purchase order requires them; heat-treatment records are provided when heat treatment is specified.
Applicable Standards
Applicable standards
SM-STD-C95400| Standard | Scope |
|---|---|
| ASTM B148 | Aluminum-bronze sand castings |
| ASTM B271 | Copper-base alloy centrifugal castings |
| ASTM B505 | Copper alloy continuous castings |
| ASME SB-148 | Aluminum-bronze sand castings (ASME Boiler & Pressure Vessel Code adoption) |
| SAE J461 / J462 | SAE designation CA954 for C95400 |
| ASME B16.24 / MSS SP-106 | Cast copper alloy flange standards, where applicable |
The edition and specification on your purchase order govern. Listing a standard here does not imply approval or certification to it.
UNS C95400: common questions
What is UNS C95400 aluminium bronze?
C95400 is a cast copper-aluminium-iron alloy, also called aluminum bronze grade C. ASTM B148 sets a minimum tensile strength of 75 ksi (about 515 MPa) in the as-cast condition.
Can C95400 be heat treated?
Yes. C95400 is among the ASTM B148 grades that respond to heat treatment, which raises strength. The heat-treated condition must be stated on the order.
Should I choose C95400 or C95800 for seawater?
C95800 nickel aluminium bronze is the more common seawater specification. C95400 is widely used in general marine, pump and valve service. The project specification decides.
